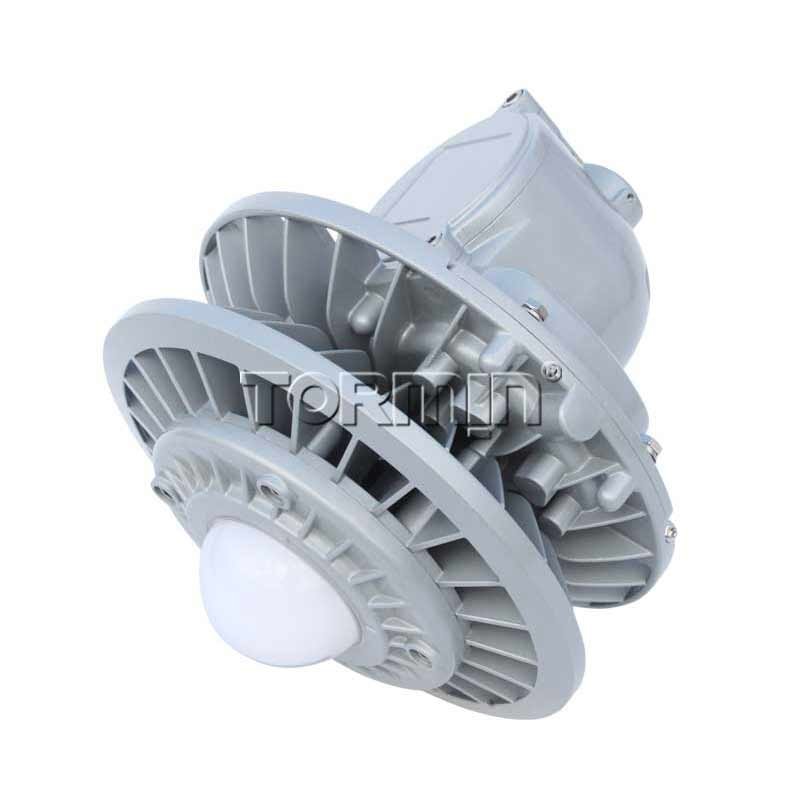

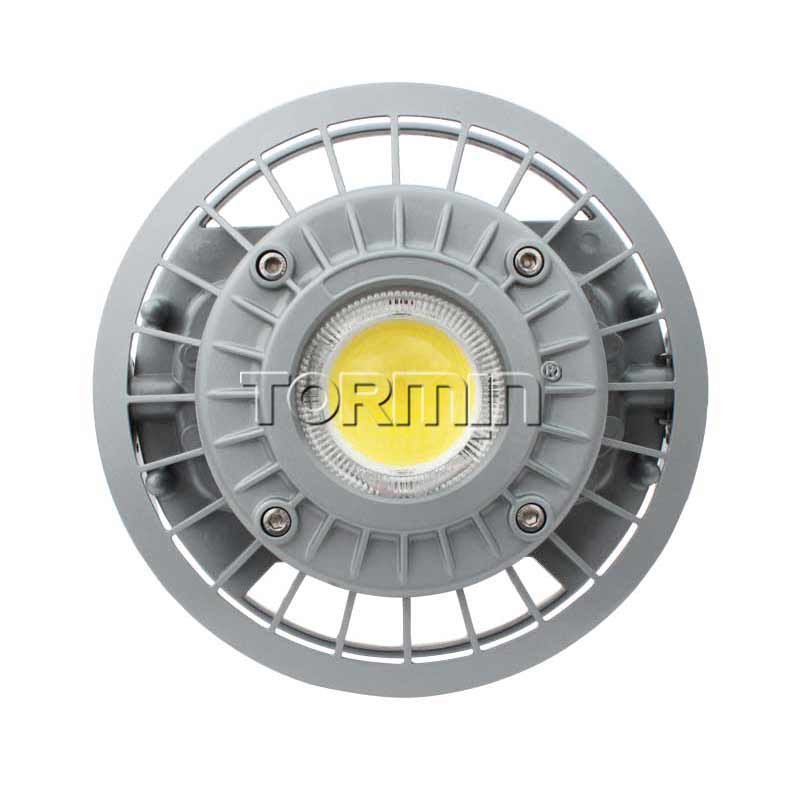

ATEX seamless anti-corrosion 60W indoor Lamp pole mounted explosion proof LED dock light
Model: BC9306P Series
Specializing in industrial lighting research and development, production, and sale of national high-tech enterprises
Wattage: 30W to 80W
ZONE 1/ 2; ZONE 21/ 22
Temperature class: T1 to T6
IP Code: IP66
Ex Code: Ex db e IIC T4/T5/T6 Gb
Ex tb IIIC T130℃/ T95℃/T80℃ Db
Ambient temp.: – 50℃ to +40℃/55℃
ATEX Cert No.: EPT16 ATEX 2484 X
IECEX Cert No.: IECEx EUT 17.0011X
Wattage: 30W to 80W
ZONE 1/ 2; ZONE 21/ 22
Temperature class: T1 to T6
IP Code: IP66
Ex Code: Ex db e IIC T4/T5/T6 Gb
Ex tb IIIC T130℃/ T95℃/T80℃ Db
Ambient temp.: – 50℃ to +40℃/55℃
ATEX Cert No.: EPT16 ATEX 2484 X
IECEX Cert No.: IECEx EUT 17.0011X
Application
Ideal to be used in the oilfield, chemical industry, offshore drilling platform, steel industry, petroleum, etc.
Gas explosive environment: Group IIA, IIB, IIC.
Characteristics
1. ATEX seamless led light is made using a special aluminum housing, all exposed fasteners adopt 304 stainless steel. Using high-tech anti-corrosion surface treatment technology, suitable for long-term highly corrosive environment of offshore oil platforms, oil drilling platform, chlor-alkali, vulcanization cyanide, etc.
2. A full range of high conductivity material accelerate convection cooling structure, effective guarantee long-term use in high temperature environments.
3. Variety of light distribution, variety of installation types, an effective solution to beautify workshop and device platform.
4. The shell is made of high-tech surface coating technology, corrosion resistant, waterproof and dust proof, suitable for harsh environments.
5. Optoelectronic integrated technology，no dark spot, no ghosting, energy-saving is 60% more than Metal Halide Lamp.
6. Taiwan Meanwell power supply or same quality power supply, power factor above 0.98, high reliability and long time service life.
7. Independent wiring chamber, safe and easy installation and maintenance.
8. Quick replace light source without welding
9. Intelligent control functions can be realized.( Dimming: 1-10VDC, PWM, Carrier, DALI, etc.)
Main specification
Item | Technical Parameters |
Input voltage range | 90~264VAC; |
24VAC /DC; 36VAC /DC (LOW) | |
Input frequency | 50Hz/ 60Hz |
Light source | LED |
Service life | 50,000h |
CRI | Ra 70 (80 Optional) |
Color Temperature | 5000K(3000K/4000K Optional) |
Cable entry | M20,M25, G3/4″,NPT1/2″,NPT3/4″ |
Leading-in cable diameter | φ10mm~φ14mm |
Dimension | φ230×270mm |
Net weight (kg) | 4.2 Kg |
Drawing of dimension (Dimensions in mm)
Ordering reference
Ordering reference | Input voltage range | Wattage | Light output | Space height ratio | Mounting height | Equivalent to |
High Pressure Mercury Lamp | ||||||
BC9306P-L30 | 90~264VAC | 30W | >3400lm | 0.9~1.75 | 2~6m
| 70W |
BC9306P-L40 | 40W | >4500lm | 100W | |||
BC9306P-L50 | 50W | >5600lm | >100W | |||
BC9306P-L60 | 60W | >6900lm | 4~8m | 150W | ||
BC9306P-L80 | 80W | >8700lm | 175W | |||
BC9306P-L25L | 18~43VAC/ 18~55VDC | 25W | >280lm | 0.9~1.4 | 2~8m | 70W |
BC9306P-L40L | 40W | >4400lm | 100W | |||
BC9306P-L60L | 60W | >6900lm | 150W |
